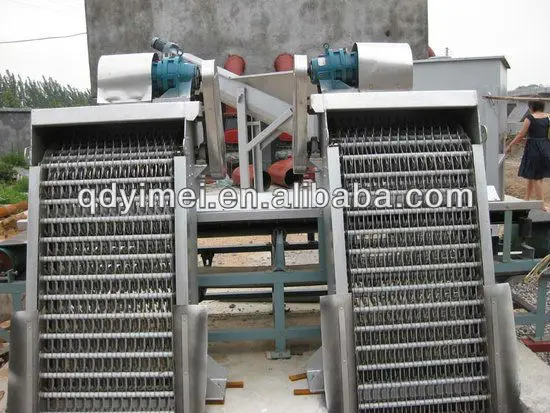

Automatic rotary mechanical bar screen for sewage water treatment

FOB Reference Price:Get Latest Price
$1,500.00 - $18,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
YIMEI
Model Number:
YMGS
Product Name:
automatic rotary mechanical bar screen for sewage water treatment
Color:
Green,Blue or Customized Color
Mail Material:
304 stainless steel or carbon steel
Width:
300~1500mm
Height:
1~10m
Depth of channel:
1~10m
Screen slot:
1mm,3mm,5mm,10mm,20mm,30mm,40mm,50mm
Install Angle:
60degree ~85degree
Weight:
2 tons
Function:
Solid and liquid Separation
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard export packing for mechanical bar screen
Port
Qingdao
Lead Time :
15 days after the deposit is confirmed



automatic rotary mechanical bar screen for sewage water treatment







Product Description

The Mechanical Bar Screen, also called grilling spotter,is a kind of solid-liquid separation device.It can eliminate the sundries in different shape automatically and continuously.As a special equipment,it can be widely used in the belows:

  • municipal sewage treatment
  • water supply industry
  • water inlet of electric plant
In the same time,it is also the nessesary equipment of the other industry,for example,texile,food processing,paper making,
leather,etc.






Advantage

YMGS Mechanical Bar Screen has the below advantages:

  • High Automaticity-can work continuously without any operation
  • High Separative Effiency
  • Low Power Consumption
  • No Noise
  • Good Corrosion Resistance
  • Self-Protection---when overload,it will give sound-light alarm and stop working automatically
  • Can work based on different setting
  • Self Control and Manual Control
  • Self Cleaning
Woking Principle

The Mechanical Bar Screen is composed of driven device,rake tooth facility,flush facility,which is assembled by a special rake tooth into a group of rotary grille chain.

Under the drive of motor reducer,the rake tooth chain turn Rotary motion as reverse flow.When it get the top,the guiding power of the geneva wheel and curve will make every rake tooth to do the relative self-cleaning motion,then due to the gravity,most of the solid will drop down. The sundries sticking in the rake tooth will be cleaned up by sweeper's reverse movement.



  • The depth of Ditch will be customized as the buyer's requirement.
  • Diversion trench Length(mm)=1500+Hxctga
  • Medium maxi temperature(°C)=less than 80 degree
  • foot margin to discharging top mouth height H(mm)=400~1000m
Production Flow

The mechanial bar screen need the below Accessories

The whole processing is as below:

Packaging

To protect the equipment in good condition,the paper carton and plastic film will be wrapped outside,as the below picture shows:



Certifications

Our production has ISO9001:2000 & CE certifications.





Company Information

Qingdao Yimei Environment Project Ltd. is found in 1988.We are located in the largest port city-Qingdao China. Our factary take up 36,000 square metres and there are more than 130 kinds machine for manufacturing. As a member of Shandong Province Environmental Protection Industrial Association, we have 360 staff and  72 experienced engineers.

Our main product is the equipment for Environment Protection and Waste Water Treatment.And the product is popular all over the world,such as Africa, North America,Domestic Market,Eastern Asia,Mid East.



FAQ

[Q]How to buy your idea products?

[A]You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).

[Q]What is your payment terms?

[A]TT and L/C are acceptable and TT will be more appreciated.30% deposit in advance and balance before loading.

[Q]What is the delivery time?

 [A] It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.

[Q]How to pack the products?

 [A]We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

[Q]How to keep your equipments from corrosion?

[A]We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.

[Q]How do you manufacture your equipment ?

[A]Our  machining technology  includes laser/plasma cutting, automatic welding,CNC cutting and bending.

[Q] How to install after the equipments arriving destination?

[A] We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.









If you are interested in our product and company,please do not hesitate to contact us.
