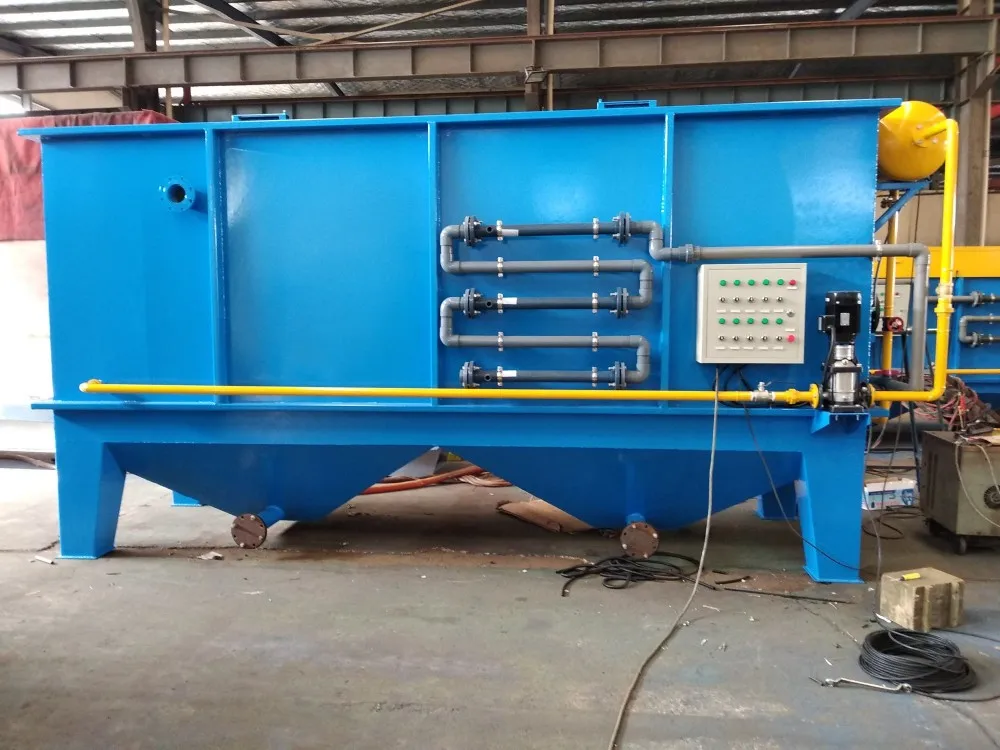

10m3 per hour waste water treatment dissolved air flotation DAF

FOB Reference Price:Get Latest Price
$3,200.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
YMRF-10
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
Place of Origin:
Shandong, China (Mainland)
Brand Name:
YIMEI
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
Warranty:
1 Year
Product name:
dissovled air flotation
Material:
CS / SS304
Capacity:
1-100m3/h
Application:
Printing, dyeing, food, chemical wastewater etc
Size:
4.5*2.2*2.2m
Power:
15kw
Wight:
9500kg
Color:
Customize
Certification:
ISO9001
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Normal package with stretch membrane.
Wooden package or ship container package
Port
Qingdao Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description

Brief introduction

Dissolved air flotation is one of the most advanced air flotation equipment in the world at present,it is designed to remove industrial and city sewage grease,jelly and suspened solid.According to different sewage,the grease removal rate can reach 95% above,most of the suspended solid can be removed,also.When add folcculant and intermixture,the COD and BOD removal rate can reach 50% above.


Working process
1. Add flocculant and intermixture into sewage.Air compressor send air to air tank
2. Pump send flocculating suspended wastewater to the pool.
3. Jet flow device take air to dissolving-air tank,the air will be forced to dissolve into water under 0.35Mpa pressure and forming dissolved air water.
4. The dissolved air water will be sent to air flotation tank.
5. When the press reduce suddenly,air will dissolve out the water and form vast microbubbles,then fully contact the flocculating suspended matter and float to the surface.
6. Surface sludge rollers will collect the solid on the water surface.

Detailed Images

Advantages of the DAF plant

Dissolved air system is mainly composed of dissolved air tank, air storage tank, air compressor and high pressure pump, dissolved tank is the critical parts of system, its function is realize water and air fully contact , speed up air dissolve, which is a closeness Withstand Voltage steel tank, its inside equip with baffle plate,sleeve, to speed up air and water speed, improve dissolved air efficiency.

Slagging remove system

Slagging remove system is consist of Scraper plate, motor, reducer,chain,gear etc.
The scraper set in the sludge tank, the scraper rotation constant, continuous scrape the floated sludge into sludge tank, then flow automatically into sludge pond.

Supporting flange

Because different country use different national standard of pipes, so this diameter of this pipes maybe defferent.

Our company provide supporting flange, client only need to weld the pipes with this flanges is ok, very easy and convenient.

Funnel shaped sewage outlet .

Usually the sludge at bottom of dissolved air flotation is sucked out by sludge pump or flow out by gravity. Use pump to suck out would add running cost, and flow out by gravity will very flow,this will effect machine running.

So, our company developed funnel shaped sewage outlet, so sludge can flow out by gravity easily and not use pump.

Model list
The pipeline flocculator have 9 model,here are the list:

Related products

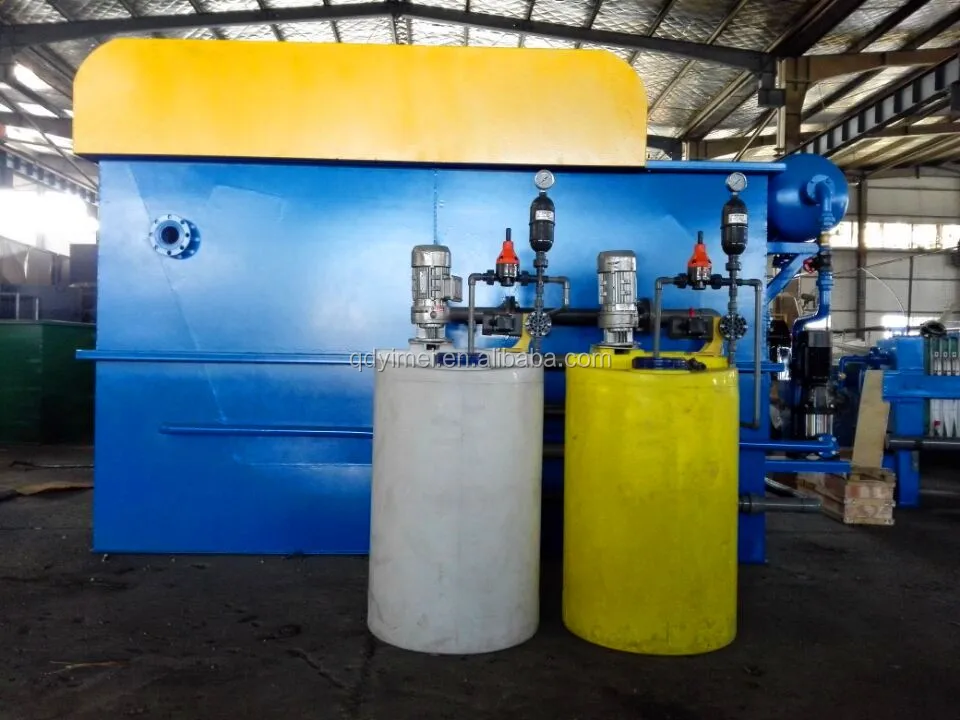

Chemical dosing system

Add PAC PAM liquid to wastewater.


Pipeline flocculator

Make sure PAM PAC liquid with wastewater mixed enoughly

Packing & Delivery
Main product

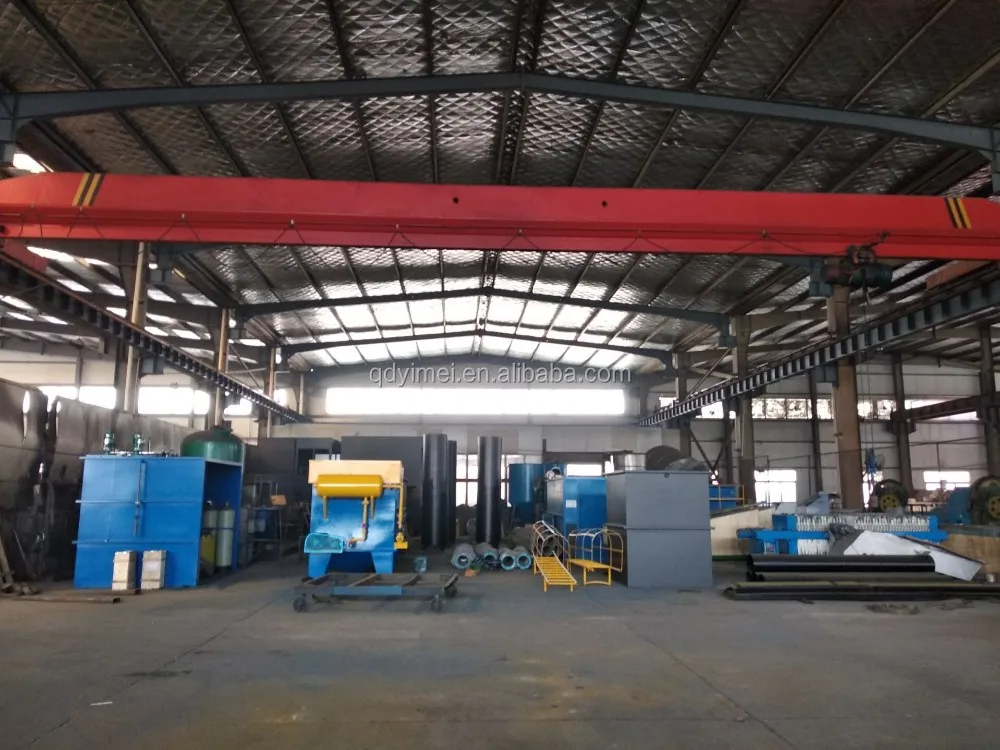

Workship show
Our Service

Pre-sale service.

1.  Detailed consultation with customer's water quality, project information.

2. Design accurate treatment process according to client water condition and give project layout drawing.

3. Invite customers to visit our company and existing wastewater treatment project if needed.

4. 24hours service.

After-sale service.

1. Help client to instaland debugging the whole plant .

2. Training work-site workers to operate the plant.

3. Lifelong sales consultation.

Comapny information
