Chinese Best supplier Dissolved Air Flotation Machine Daf system

FOB Reference Price:Get Latest Price
$3,500.00 - $30,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 15 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
YM
Model Number:
YMQF
Color:
Any
Certification:
CE and ISO
Material:
Anti-corrosion carbon Steel or stainless steel
Capacity:
1-300m3/h
Warranty:
12 Months
Control:
PLC
Package:
Standard Packing
Thickness:
6MM
Brand:
YIMEI
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard packing
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 >2
Est. Time(days) 15 20 To be negotiated
Product Description

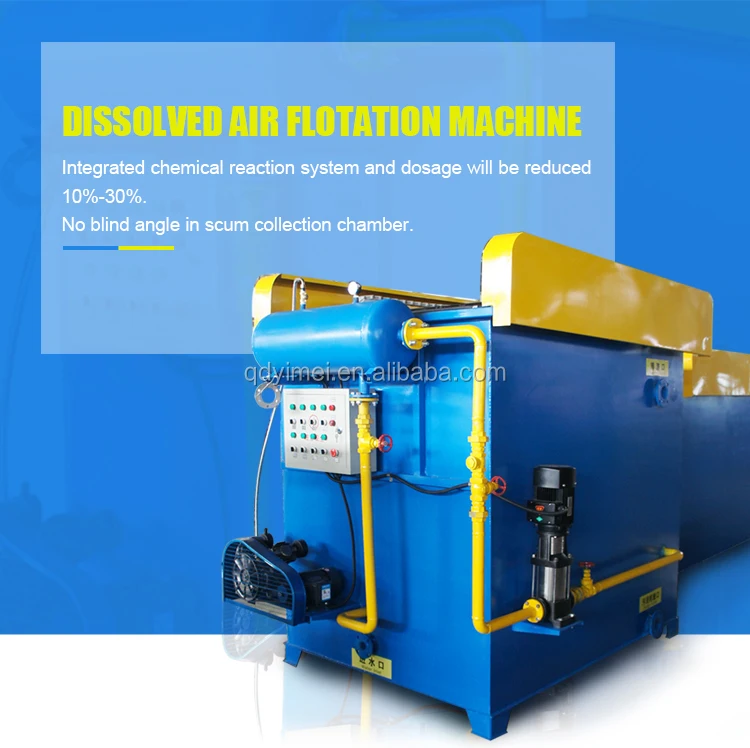

Dissolved air flotation machine


1.Introduction
Dissolved air flotation machine (DAF) is manufactured by our factory and mainly used for solid-liquid separation and liquid-liquid separation. Flotation device will produce large amounts of tiny bubbles by dissolved gas and release system in the water, to make the adhesion in the waste water and water close to the density of solid or liquid particles, causing the whole condition of density smaller
than water, and depend on the ascend to the surface flotage, so as to achieve the purpose of the liquid-solid separation, liquid-liquid separation.
Our advantages than others:
1)We make top cover to protect chain,more safety and longlife.

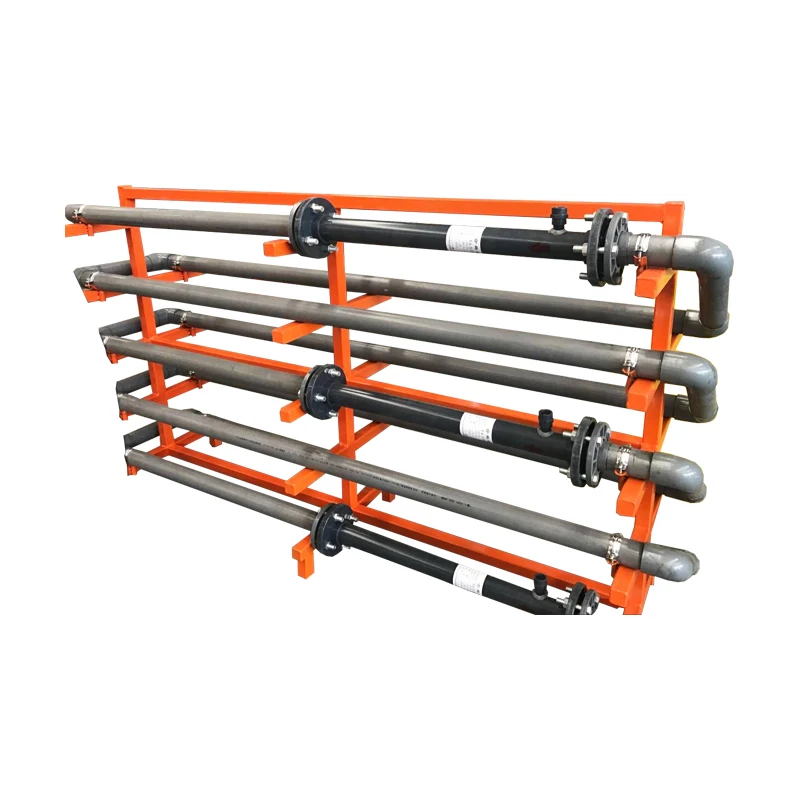

2) Ues pipe flocculation instead of flocculation tank, can save area.

3)The carbon steel is corrosion resistance,thickness is 6mm

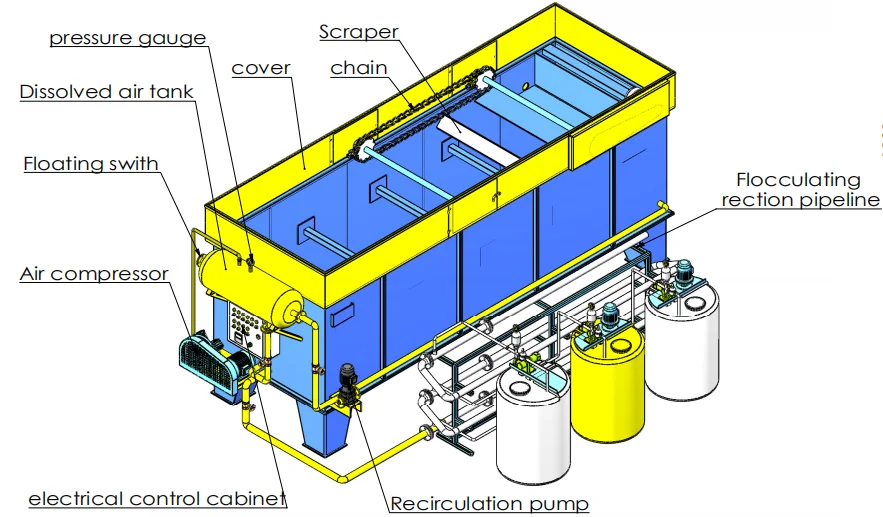

2. Work Principle:
The air will be send by air compressor into air tank, then take in air dissolved tank by jet flow device, the air will be force to dissolve into water under 0.35Mpa pressure and forming dissolved air water, then send to air flotation tank. Under the circumstance of sudden release, the air dissolved in water will be dissolve out and form vast microbubble group, which will be fully contact the flocculating suspended matter in sewage, the suspended matter was sent by pump and flocculation after adding flocculant, the ascending microbubble group will adsorb in the flocculated suspended matter, made its density reduce and floated to water surface, thus reach the purpose of removing SS and CODcr etc.

3.Feature:
 1)Dissolved air pump edge bibulous the edge is inspiratory, pump pressurized mix within, gas to liquid efficient dissolving, small bubbles than 30 um.
2)Low voltage operation, the dissolved gas efficiency is as high as 99%, release rate as high as 99%.
3)Tiny bubbles and suspended particles of efficient adsorption, improve the SS remove effect.
4)Dissolved gas water dissolving efficiency 80-100%, than traditional dissolved gas floating high efficiency three times.
5)Pressure-capacity curve smooth, easy to achieve automatic control, easy to operate, easy maintenance, low noise.

4 .Applications :
Dissolved air flotation (DAF) is a proven and effective physical/chemical technology for treating a variety of industrial and municipal process and wastewater streams., was commonly used for the removal of oils & greases and suspended solids to meet a variety of treatment goals including:
Product recovery and reuse
Pretreatment to meet sewer discharge limits
Pretreatment to reduce loading on downstream biological treatment systems
Polishing of biological treatment effluent
Thickening of biosolids

Industrial and municipal applications for DAF including:
Product recovery and reuse Pretreatment to meet sewer discharge limits
Petreatment to reduce loading on downstream biological treatment systems Polishing of biological treatment effluent ,thickening of biosolids
Applications scope:
Car washing water,Poultry processing, Meat processing ,Laundries and textiles ,Egg processing ,Byproduct rendering, Pulp and paper, Plastics recycling, Dairy and milk products, Construction site,Metal plating and finishing, Bakeries ,Confectionaries, Food processing, Snack food processing, Beverage, Petroleum and petrochemical refining ,Natural gas and petroleum fracking ,Biochemical ,Personal care products

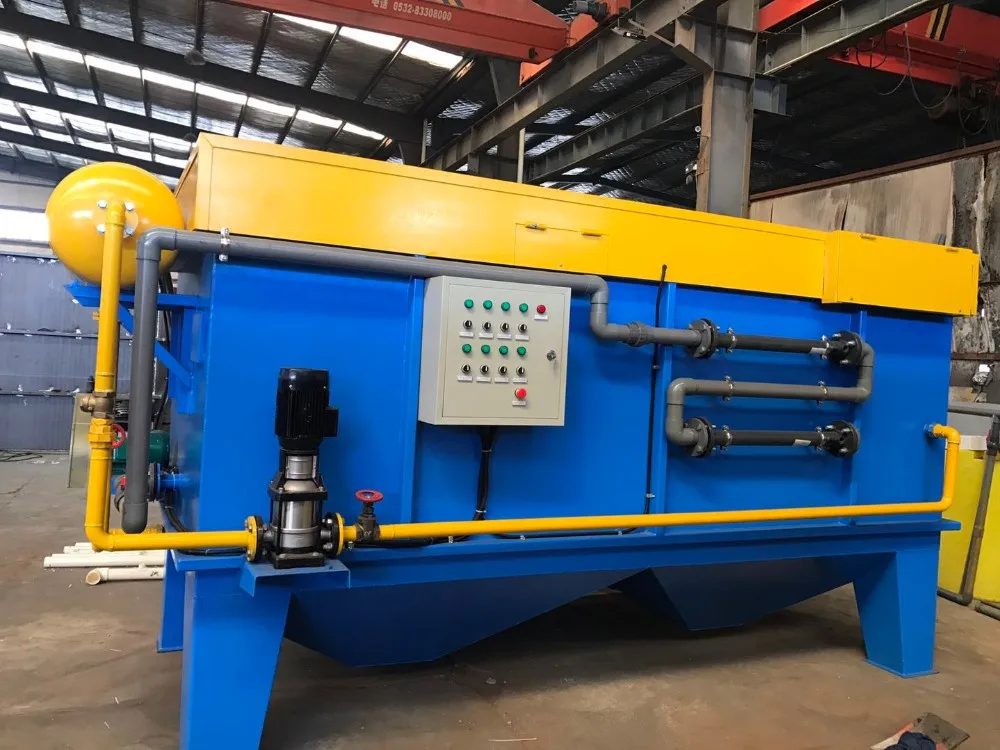

Detailed Images

Main products:

package waste water treatment plant https://www.alibaba.com/product-detail/small-package-integrated-mbr-technology-wastewater_60775597268.html?spm=a2747.manage.list.184.29a371d2lHCHQ0

Lamella clarifier https://www.alibaba.com/product-detail/small-package-integrated-mbr-technology-wastewater_60775597268.html?spm=a2747.manage.list.184.29a371d2lHCHQ0

Jet flow air flotation machine  https://www.alibaba.com/product-detail/small-package-integrated-mbr-technology-wastewater_60775597268.html?spm=a2747.manage.list.184.29a371d2lHCHQ0

Sludge dewatering machine   https://www.alibaba.com/product-detail/small-package-integrated-mbr-technology-wastewater_60775597268.html?spm=a2747.manage.list.184.29a371d2lHCHQ0

Oil skimmer https://www.alibaba.com/product-detail/small-package-integrated-mbr-technology-wastewater_60775597268.html?spm=a2747.manage.list.184.29a371d2lHCHQ0

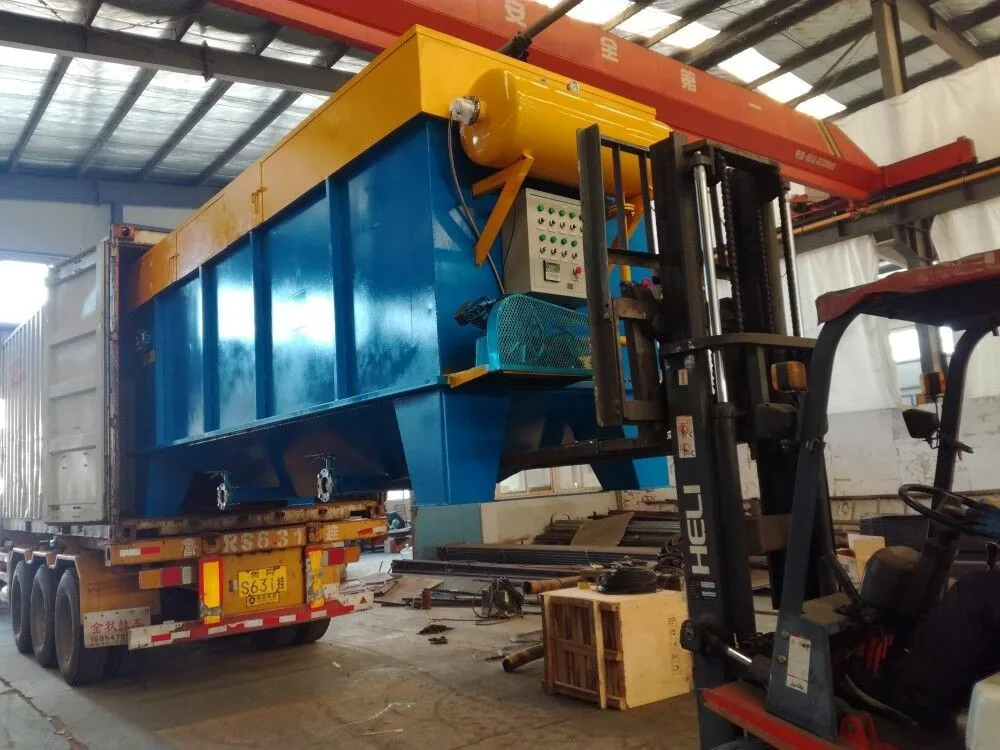

Packing & Delivery
